gNode Class Reference

#include <gNode.h>

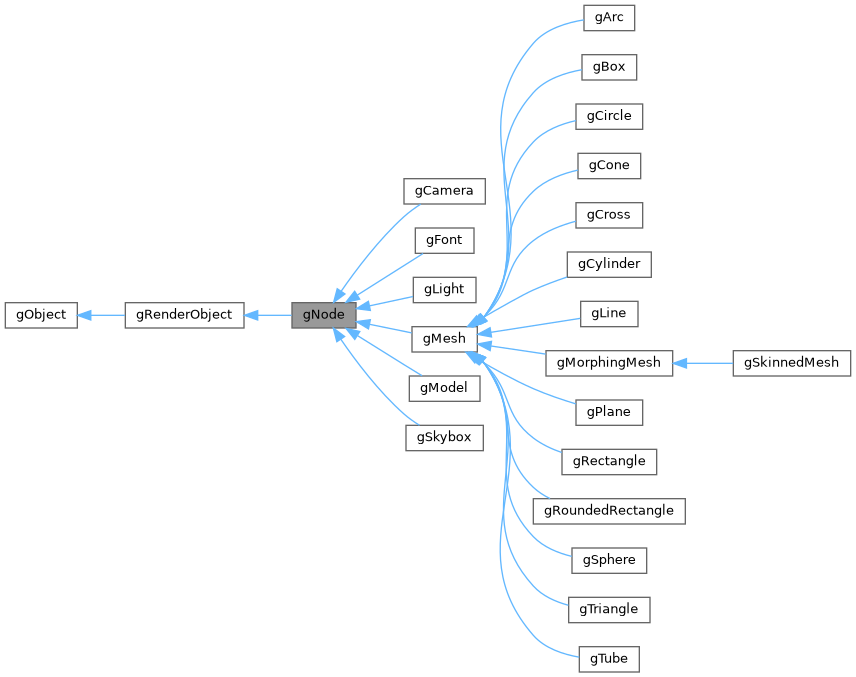

Inheritance diagram for gNode:

Collaboration diagram for gNode:

Public Member Functions
	gNode ()
virtual	~gNode ()
void	move (float dx, float dy, float dz)
void	move (const glm::vec3 &dv)
void	rotate (const glm::quat &q)
void	rotate (float radians, float ax, float ay, float az)
void	rotateDeg (float degrees, float ax, float ay, float az)
void	rotateAround (float radians, const glm::vec3 &axis, const glm::vec3 &point)
void	rotateAroundDeg (float degrees, const glm::vec3 &axis, const glm::vec3 &point)
void	scale (float sx, float sy, float sz)
void	scale (float s)
void	setPosition (float px, float py, float pz)
void	setPosition (const glm::vec3 &pv)
void	setOrientation (const glm::quat &o)
void	setOrientation (const glm::vec3 &angles)
void	setScale (const glm::vec3 &s)
void	setScale (float sx, float sy, float sz)
void	setScale (float s)
void	truck (float distance)
void	boom (float distance)
void	dolly (float distance)
void	tilt (float radians)
void	tiltDeg (float degrees)
void	pan (float radians)
void	panDeg (float degrees)
void	roll (float radians)
void	rollDeg (float degrees)
float	getPosX () const
float	getPosY () const
float	getPosZ () const
const glm::vec3 &	getPosition () const
const glm::quat &	getOrientation () const
const glm::vec3 &	getScale () const
glm::vec3	getScalarDirectionX () const
glm::vec3	getScalarDirectionY () const
glm::vec3	getScalarDirectionZ () const
void	setTransformationMatrix (const glm::mat4 &transformationMatrix)
const glm::mat4 &	getTransformationMatrix () const
int	getId () const
void	setParent (gNode *parent)
gNode *	getParent () const
void	removeParent ()
void	addChild (gNode *child)
void	removeChild (gNode *child)
void	removeChild (int gObjectId)
void	setEnabled (bool isEnabled)
bool	isEnabled () const
void	pushMatrix () const
void	popMatrix () const
Public Member Functions inherited from gRenderObject
	gRenderObject ()
int	getScreenWidth ()
int	getScreenHeight ()
void	pushMatrix ()
void	popMatrix ()
Public Member Functions inherited from gObject
	gObject ()
void	logi (std::string message)
void	logd (std::string message)
void	logw (std::string message)
void	loge (std::string message)
void	logi (std::string tag, std::string message)
void	logd (std::string tag, std::string message)
void	logw (std::string tag, std::string message)
void	loge (std::string tag, std::string message)

Protected Member Functions
virtual void	processTransformationMatrix ()

Protected Attributes
gNode *	parent
std::deque< gNode * >	children
glm::mat4	localtransformationmatrix
bool	isenabled
glm::vec3	position
glm::quat	orientation
glm::vec3	scalevec
glm::vec3	prevposition
glm::quat	prevorientation
glm::vec3	prevscalevec

Additional Inherited Members
Static Public Member Functions inherited from gRenderObject
static void	setScreenSize (int screenWidth, int screenHeight)
static void	setUnitScreenSize (int unitWidth, int unitHeight)
static void	setScreenScaling (int screenScaling)
static void	enableShadowMapping ()
static void	disableShadowMapping ()
static bool	isShadowMappingEnabled ()
static gRenderer *	getRenderer ()
static void	destroyRenderer ()
static void	createRenderer ()
Static Public Member Functions inherited from gObject
static std::string	gGetAppDir ()
static std::string	gGetAssetsDir ()
static void	gSetAssetsDir (std::string assetsDir)
static std::string	gGetFilesDir ()
static std::string	gGetImagesDir ()
static std::string	gGetFontsDir ()
static std::string	gGetModelsDir ()
static std::string	gGetTexturesDir ()
static std::string	gGetShadersDir ()
static std::string	gGetSoundsDir ()
static std::string	gGetDatabasesDir ()
static std::string	gGetVideosDir ()
static void	setCurrentResolution (int scalingNo, int currentResolutionNo)
Static Public Attributes inherited from gObject
static const int	LOGLEVEL_SILENT
static const int	LOGLEVEL_DEBUG
static const int	LOGLEVEL_INFO
static const int	LOGLEVEL_WARNING
static const int	LOGLEVEL_ERROR
Static Protected Attributes inherited from gRenderObject
static bool	isshadowmappingenabled
Static Protected Attributes inherited from gObject
static int	renderpassnum
static int	renderpassno
static int	releasescaling
static int	releaseresolution

Constructor & Destructor Documentation

gNode()

gNode::gNode

(

)

~gNode()

virtual gNode::~gNode ( )

virtual

Member Function Documentation

addChild()

void gNode::addChild

(

gNode *

child

)

boom()

void gNode::boom

(

float

distance

)

Movement up-down along y axis

Parameters

distance

movement amount in gl units

dolly()

void gNode::dolly

(

float

distance

)

Movement forward-backward along z axis

Parameters

distance

movement amount in gl units

getId()

int gNode::getId

(

)

const

getOrientation()

const glm::quat & gNode::getOrientation

(

)

const

getParent()

gNode * gNode::getParent

(

)

const

getPosition()

const glm::vec3 & gNode::getPosition

(

)

const

getPosX()

float gNode::getPosX

(

)

const

getPosY()

float gNode::getPosY

(

)

const

getPosZ()

float gNode::getPosZ

(

)

const

getScalarDirectionX()

glm::vec3 gNode::getScalarDirectionX

(

)

const

Returns truck direction as a scalar vec3.

getScalarDirectionY()

glm::vec3 gNode::getScalarDirectionY

(

)

const

Returns boom direction as a scalar vec3.

getScalarDirectionZ()

glm::vec3 gNode::getScalarDirectionZ

(

)

const

Returns dolly direction as a scalar vec3.

getScale()

const glm::vec3 & gNode::getScale

(

)

const

getTransformationMatrix()

const glm::mat4 & gNode::getTransformationMatrix

(

)

const

isEnabled()

bool gNode::isEnabled

(

)

const

move() [1/2]

void gNode::move

(

const glm::vec3 &

dv

)

move() [2/2]

void gNode::move	(	float	dx,
		float	dy,
		float	dz
	)

pan()

void gNode::pan

(

float

radians

)

Rotation around local y axis in radians

Parameters

angle

in radians

panDeg()

void gNode::panDeg

(

float

degrees

)

Rotation around local y axis in degrees

Parameters

angle

in degrees

popMatrix()

void gNode::popMatrix

(

)

const

processTransformationMatrix()

virtual void gNode::processTransformationMatrix ( )

protectedvirtual

Reimplemented in gLight, gMesh, and gModel.

pushMatrix()

void gNode::pushMatrix

(

)

const

removeChild() [1/2]

void gNode::removeChild

(

gNode *

child

)

removeChild() [2/2]

void gNode::removeChild

(

int

gObjectId

)

removeParent()

void gNode::removeParent

(

)

roll()

void gNode::roll

(

float

radians

)

Rotation around local z axis in radians

Parameters

angle

in radians

rollDeg()

void gNode::rollDeg

(

float

degrees

)

Rotation around local z axis in degrees

Parameters

angle

in degrees

rotate() [1/2]

void gNode::rotate

(

const glm::quat &

q

)

rotate() [2/2]

void gNode::rotate	(	float	radians,
		float	ax,
		float	ay,
		float	az
	)

rotateAround()

void gNode::rotateAround	(	float	radians,
		const glm::vec3 &	axis,
		const glm::vec3 &	point
	)

rotateAroundDeg()

void gNode::rotateAroundDeg	(	float	degrees,
		const glm::vec3 &	axis,
		const glm::vec3 &	point
	)

rotateDeg()

void gNode::rotateDeg	(	float	degrees,
		float	ax,
		float	ay,
		float	az
	)

scale() [1/2]

void gNode::scale

(

float

s

)

scale() [2/2]

void gNode::scale	(	float	sx,
		float	sy,
		float	sz
	)

setEnabled()

void gNode::setEnabled

(

bool

isEnabled

)

setOrientation() [1/2]

void gNode::setOrientation

(

const glm::quat &

o

)

setOrientation() [2/2]

void gNode::setOrientation

(

const glm::vec3 &

angles

)

setParent()

void gNode::setParent

(

gNode *

parent

)

setPosition() [1/2]

void gNode::setPosition

(

const glm::vec3 &

pv

)

setPosition() [2/2]

void gNode::setPosition	(	float	px,
		float	py,
		float	pz
	)

setScale() [1/3]

void gNode::setScale

(

const glm::vec3 &

s

)

setScale() [2/3]

void gNode::setScale

(

float

s

)

setScale() [3/3]

void gNode::setScale	(	float	sx,
		float	sy,
		float	sz
	)

setTransformationMatrix()

void gNode::setTransformationMatrix

(

const glm::mat4 &

transformationMatrix

)

tilt()

void gNode::tilt

(

float

radians

)

Rotation around local x axis in radians

Parameters

angle

in radians

tiltDeg()

void gNode::tiltDeg

(

float

degrees

)

Rotation around local x axis in degrees

Parameters

angle

in degrees

truck()

void gNode::truck

(

float

distance

)

Movement right-left along x axis

Parameters

distance

movement amount in gl units

Member Data Documentation

children

std::deque<gNode*> gNode::children

protected

isenabled

bool gNode::isenabled

protected

localtransformationmatrix

glm::mat4 gNode::localtransformationmatrix

protected

orientation

glm::quat gNode::orientation

protected

parent

gNode* gNode::parent

protected

position

glm::vec3 gNode::position

protected

prevorientation

glm::quat gNode::prevorientation

protected

prevposition

glm::vec3 gNode::prevposition

protected

prevscalevec

glm::vec3 gNode::prevscalevec

protected

scalevec

glm::vec3 gNode::scalevec

protected

---

The documentation for this class was generated from the following file:

• gNode.h
