#include <gGUIProgressBar.h>

Inheritance diagram for gGUIProgressBar:

[legend]

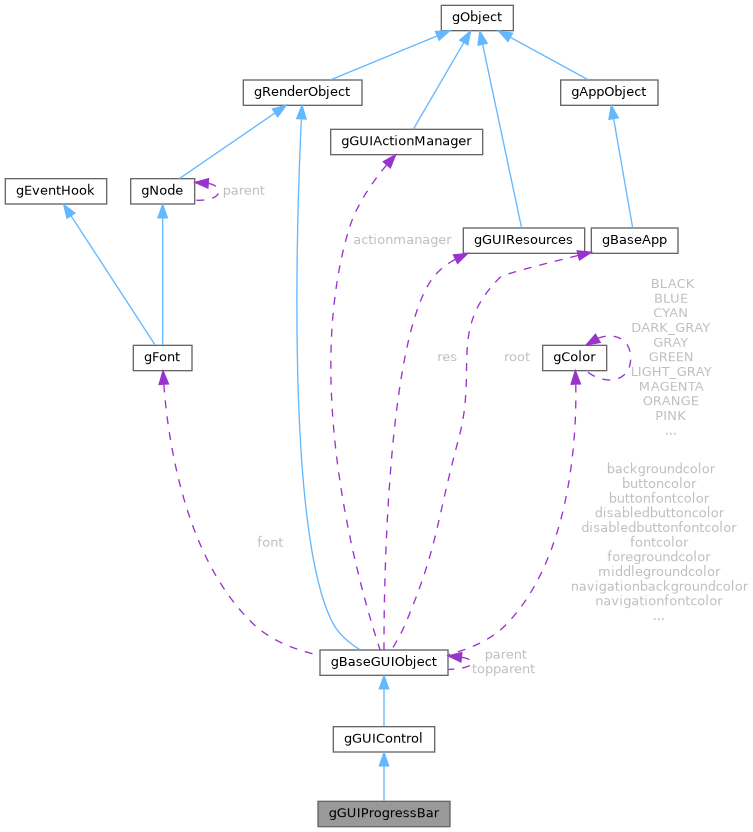

Collaboration diagram for gGUIProgressBar:

[legend]

Public Types
enum	TYPE { TYPE_LINE , TYPE_CIRCULAR , TYPE_SPIN }

Public Types inherited from gBaseGUIObject
enum	{ TEXTALIGNMENT_LEFT , TEXTALIGNMENT_MIDDLE , TEXTALIGNMENT_RIGHT }

Public Member Functions
	gGUIProgressBar ()

virtual	~gGUIProgressBar ()

void	draw ()

void	setValue (float value)

float	getValue ()

void	setMaxValue (float value)

void	setMinValue (float value)

float	getMaxValue ()

float	getMinValue ()

void	setProgressBarColor (float r, float g, float b)

void	setBackgroundColor (float r, float g, float b)

gColor *	getProgressBarColor ()

void	setBorderThickness (float thickness)

float	getBorderThickness ()

void	setProgressBarSize (int w, int h)

int	getProgressBarWidth ()

int	getProgressBarHeight ()

void	setType (TYPE type)

TYPE	getType ()

void	setLineTextColor (float r, float g, float b)

void	setSpinTextColor (float r, float g, float b)

void	setSpinThickness (float thickness)

float	getSpinThickness ()

void	displayProgressText (bool display)

Public Member Functions inherited from gGUIControl
	gGUIControl ()

virtual	~gGUIControl ()

virtual void	set (gBaseApp root, gBaseGUIObject topParentGUIObject, gBaseGUIObject *parentGUIObject, int parentSlotLineNo, int parentSlotColumnNo, int x, int y, int w, int h)

virtual int	getCursor (int x, int y)

virtual void	update ()

virtual int	calculateContentHeight ()

virtual bool	countAsSpace ()

void	setCountAsSpace (bool isSpace)

Public Member Functions inherited from gBaseGUIObject
	gBaseGUIObject ()

virtual	~gBaseGUIObject ()

int	getId ()

int	getType ()

void	setEnabled (bool isEnabled)

bool	isEnabled ()

void	setTitleOn (bool isTitleOn)

bool	isTitleOn ()

virtual void	setTopParent (gBaseGUIObject *parentGUIObject)

gBaseGUIObject *	getTopParent ()

virtual void	setParent (gBaseGUIObject *parentGUIObject)

gBaseGUIObject *	getParent ()

void	setParentSlotNo (int parentSlotLineNo, int parentSlotColumnNo)

int	getParentSlotLineNo ()

int	getParentSlotColumnNo ()

void	setTitle (std::string title)

std::string	getTitle ()

virtual void	keyPressed (int key)

virtual void	keyReleased (int key)

virtual void	charPressed (unsigned int codepoint)

virtual void	mouseMoved (int x, int y)

virtual void	mousePressed (int x, int y, int button)

virtual void	mouseDragged (int x, int y, int button)

virtual void	mouseReleased (int x, int y, int button)

virtual void	mouseScrolled (int x, int y)

virtual void	mouseEntered ()

virtual void	mouseExited ()

virtual void	windowResized (int w, int h)

virtual void	onGUIEvent (int guiObjectId, int eventType, int sourceEventType, std::string value1="", std::string value2="")

void	setRootApp (gBaseApp *root)

virtual void	setCursorOn (bool isOn)

Public Member Functions inherited from gRenderObject
	gRenderObject ()

int	getScreenWidth ()

int	getScreenHeight ()

void	pushMatrix ()

void	popMatrix ()

Public Member Functions inherited from gObject
	gObject ()

void	logi (std::string message)

void	logd (std::string message)

void	logw (std::string message)

void	loge (std::string message)

void	logi (std::string tag, std::string message)

void	logd (std::string tag, std::string message)

void	logw (std::string tag, std::string message)

void	loge (std::string tag, std::string message)

Additional Inherited Members
Static Public Member Functions inherited from gBaseGUIObject
static void	setBackgroundColor (gColor *backgroundColor)

static gColor *	getBackgroundColor ()

static void	setMiddlegroundColor (gColor *middlegroundColor)

static gColor *	getMiddlegroundColor ()

static void	setForegroundColor (gColor *foregroundColor)

static gColor *	getForegroundColor ()

static void	setTextBackgroundColor (gColor *textBackgroundColor)

static gColor *	getTextBackgroundColor ()

static void	setNavigationBackgroundColor (gColor *navigationBackgroundColor)

static gColor *	getNavigationBackgroundColor ()

static void	setFont (gFont *font)

static gFont *	getFont ()

static void	setFontColor (gColor *fontColor)

static gColor *	getFontColor ()

static void	setNavigationFontColor (gColor *navigationFontColor)

static gColor *	getNavigationFontColor ()

static void	setButtonColor (gColor *color)

static gColor *	getButtonColor ()

static void	setPressedButtonColor (gColor *color)

static gColor *	getPressedButtonColor ()

static void	setDisabledButtonColor (gColor *color)

static gColor *	getDisabledButtonColor ()

static void	setButtonFontColor (gColor *color)

static gColor *	getButtonFontColor ()

static void	setPressedButtonFontColor (gColor *color)

static gColor *	getPressedButtonFontColor ()

static void	setDisabledButtonFontColor (gColor *color)

static gColor *	getDisabledButtonFontColor ()

Static Public Member Functions inherited from gRenderObject
static void	setScreenSize (int screenWidth, int screenHeight)

static void	setUnitScreenSize (int unitWidth, int unitHeight)

static void	setScreenScaling (int screenScaling)

static void	enableShadowMapping ()

static void	disableShadowMapping ()

static bool	isShadowMappingEnabled ()

static gRenderer *	getRenderer ()

static void	destroyRenderer ()

static void	createRenderer ()

Static Public Member Functions inherited from gObject
static std::string	gGetAppDir ()

static std::string	gGetAssetsDir ()

static void	gSetAssetsDir (std::string assetsDir)

static std::string	gGetFilesDir ()

static std::string	gGetImagesDir ()

static std::string	gGetFontsDir ()

static std::string	gGetModelsDir ()

static std::string	gGetTexturesDir ()

static std::string	gGetShadersDir ()

static std::string	gGetSoundsDir ()

static std::string	gGetDatabasesDir ()

static std::string	gGetVideosDir ()

static void	setCurrentResolution (int scalingNo, int currentResolutionNo)

Public Attributes inherited from gBaseGUIObject
int	id

int	type

int	left

int	top

int	right

int	bottom

int	width

int	height

int	titlex

int	titley

int	titleheight

bool	isfocused

bool	iscursoron

bool	issizer

bool	iscontainer

bool	isresizable

Static Public Attributes inherited from gBaseGUIObject
static const int	GUIEVENT_FOCUSED = -1

static const int	GUIEVENT_UNFOCUSED = -2

static const int	CURSOR_ARROW = 0

static const int	CURSOR_IBEAM = 1

static const int	CURSOR_CROSSHAIR = 2

static const int	CURSOR_HAND = 3

static const int	CURSOR_HRESIZE = 4

static const int	CURSOR_VRESIZE = 5

static int	focusid

static int	previousfocusid

Static Public Attributes inherited from gObject
static const int	LOGLEVEL_SILENT

static const int	LOGLEVEL_DEBUG

static const int	LOGLEVEL_INFO

static const int	LOGLEVEL_WARNING

static const int	LOGLEVEL_ERROR

Protected Attributes inherited from gGUIControl
bool	countasspace

int	oldwidth

int	oldheight

Protected Attributes inherited from gBaseGUIObject
std::string	title

gBaseApp *	root

gBaseGUIObject *	topparent

gBaseGUIObject *	parent

bool	isenabled

bool	istitleon

int	parentslotlineno

int	parentslotcolumnno

Static Protected Attributes inherited from gBaseGUIObject
static gColor *	backgroundcolor

static gColor *	middlegroundcolor

static gColor *	foregroundcolor

static gColor *	textbackgroundcolor

static gColor *	navigationbackgroundcolor

static gFont *	font

static gColor *	fontcolor

static gColor *	navigationfontcolor

static gColor *	buttoncolor

static gColor *	pressedbuttoncolor

static gColor *	disabledbuttoncolor

static gColor *	buttonfontcolor

static gColor *	pressedbuttonfontcolor

static gColor *	disabledbuttonfontcolor

static gGUIActionManager	actionmanager

static gGUIResources	res

Static Protected Attributes inherited from gRenderObject
static bool	isshadowmappingenabled

Static Protected Attributes inherited from gObject
static int	renderpassnum

static int	renderpassno

static int	releasescaling

static int	releaseresolution

Detailed Description

This class creates and controls a progress bar. Progress bars show the current value in the given range. They basically used for everything that can be increased or decreased.

Developers can change the current value of the progress bar according to their calculations. They can change the color of the progress bar.

(value * 180) / (valuemax - valuemin) This formula used for calculating the progress bar's current value.

Member Enumeration Documentation

◆ TYPE

enum gGUIProgressBar::TYPE

Enumerator
TYPE_LINE
TYPE_CIRCULAR
TYPE_SPIN

Constructor & Destructor Documentation

◆ gGUIProgressBar()

gGUIProgressBar::gGUIProgressBar ( )

◆ ~gGUIProgressBar()

virtual gGUIProgressBar::~gGUIProgressBar ( )

virtual

Member Function Documentation

◆ displayProgressText()

void gGUIProgressBar::displayProgressText ( bool display )

◆ draw()

void gGUIProgressBar::draw ( )

virtual

Reimplemented from gGUIControl.

◆ getBorderThickness()

float gGUIProgressBar::getBorderThickness ( )

Returns the thickness of progress bar's borders.

◆ getMaxValue()

float gGUIProgressBar::getMaxValue ( )

Returns the maximum value of the progress bar.

◆ getMinValue()

float gGUIProgressBar::getMinValue ( )

Returns the maximum value of the progress bar.

◆ getProgressBarColor()

gColor * gGUIProgressBar::getProgressBarColor ( )

Returns the color of the progress bar.

◆ getProgressBarHeight()

int gGUIProgressBar::getProgressBarHeight ( )

Gets height of the progressbar's outer frame

◆ getProgressBarWidth()

int gGUIProgressBar::getProgressBarWidth ( )

Gets width of the progressbar's outer frame

◆ getSpinThickness()

float gGUIProgressBar::getSpinThickness ( )

◆ getType()

TYPE gGUIProgressBar::getType ( )

◆ getValue()

float gGUIProgressBar::getValue ( )

Returns the shown value of the progress bar.

◆ setBackgroundColor()

void gGUIProgressBar::setBackgroundColor	(	float	r,
		float	g,
		float	b
	)

Sets the color of the background of the progressbar with the given color. Colors consist of RGB values float between 0.0f-1.0f.

Parameters

color The given color consist of (r, g, b) float values

◆ setBorderThickness()

void gGUIProgressBar::setBorderThickness ( float thickness )

Sets the thickness of progress bar's borders. Borders can be between 0.0f and 25.0f.

Parameters

thickness Should be given float type. If the given value is bigger than 25.0f than the value is silently ignored. Any value smaller and equal than 0.0f makes the borders disabled.

◆ setLineTextColor()

void gGUIProgressBar::setLineTextColor	(	float	r,
		float	g,
		float	b
	)

◆ setMaxValue()

void gGUIProgressBar::setMaxValue ( float value )

Sets the maximum value of the progress bar. The maximum value can be any float value between C++ float limits. The maximum value should be bigger than the minimum value. If the maximum value is lower than minimum value, the given maximum value is silently ignored.

Parameters

value A float number bigger than the minimum value

◆ setMinValue()

void gGUIProgressBar::setMinValue ( float value )

Sets the minimum value of the progress bar. The minimum value can be any float value between C++ float limits. The minimum value should be lower than the maximum value.If the minimum value is bigger than the maximum value, the minimum value is silently ignored.

Parameters

value A float number lower than the maximum value

◆ setProgressBarColor()

void gGUIProgressBar::setProgressBarColor	(	float	r,
		float	g,
		float	b
	)

Sets the color of the progress bar with the given color. Colors consist of RGB values float between 0.0f-1.0f.

Parameters

color The given color consist of (r, g, b) float values

◆ setProgressBarSize()

void gGUIProgressBar::setProgressBarSize	(	int	w,
		int	h
	)

Sets the size of the progressbar's outer frame

Parameters

w	Width of the outer frame
h	Height of the outer frame

◆ setSpinTextColor()

void gGUIProgressBar::setSpinTextColor	(	float	r,
		float	g,
		float	b
	)

◆ setSpinThickness()

void gGUIProgressBar::setSpinThickness ( float thickness )

◆ setType()

void gGUIProgressBar::setType ( TYPE type )

◆ setValue()

void gGUIProgressBar::setValue ( float value )

Sets the shown value of the progress bar. Developers can determine the shown value of the progress bar according to the minimum value and the maximum value.If the value is not between the minimum value and the maximum value, value is silently ignored.

Parameters

value The value should be a float number between the minimum value and the maximum value.

The documentation for this class was generated from the following file:

gGUIProgressBar.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ TYPE

Constructor & Destructor Documentation

◆ gGUIProgressBar()

◆ ~gGUIProgressBar()

Member Function Documentation

◆ displayProgressText()

◆ draw()

◆ getBorderThickness()

◆ getMaxValue()

◆ getMinValue()

◆ getProgressBarColor()

◆ getProgressBarHeight()

◆ getProgressBarWidth()

◆ getSpinThickness()

◆ getType()

◆ getValue()

◆ setBackgroundColor()

◆ setBorderThickness()

◆ setLineTextColor()

◆ setMaxValue()

◆ setMinValue()

◆ setProgressBarColor()

◆ setProgressBarSize()

◆ setSpinTextColor()

◆ setSpinThickness()

◆ setType()

◆ setValue()
