gGUINavigation Class Reference

#include <gGUINavigation.h>

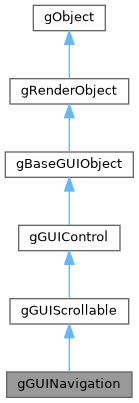

Inheritance diagram for gGUINavigation:

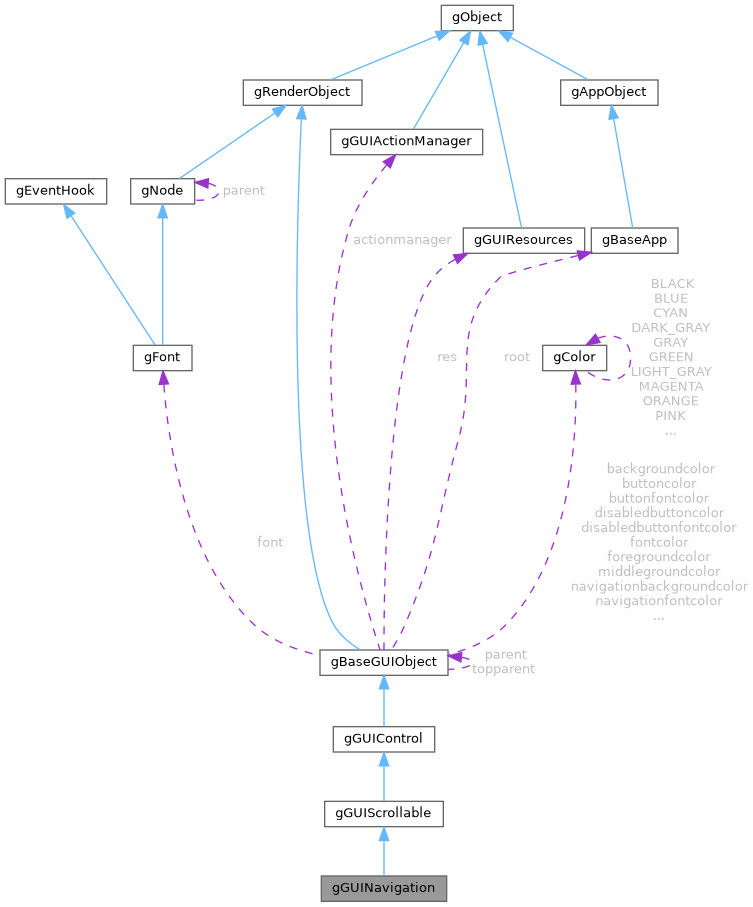

Collaboration diagram for gGUINavigation:

Public Member Functions
	gGUINavigation ()
virtual	~gGUINavigation ()
virtual void	set (gBaseApp *root, gBaseGUIObject *topParentGUIObject, gBaseGUIObject *parentGUIObject, int parentSlotLineNo, int parentSlotColumnNo, int x, int y, int w, int h)
virtual void	update ()
virtual void	draw ()
void	addPane (gGUIPane *newPane, bool isEnabled=true)
void	setPane (int paneNo, gGUIPane *newPane, bool isEnabled=true)
void	removePane (int paneNo)
gGUIPane *	getPane (int paneNo)
int	getPaneNum ()
void	setPaneEnabled (int paneNo, bool isEnabled)
bool	isPaneEnabled (int paneNo)
void	clear ()
void	setSelectedPaneNo (int paneNo)
int	getSelectedPaneNo ()
gGUIPane *	getSelectedPane ()
void	showPane (gGUIPane *paneToShow)
virtual void	mousePressed (int x, int y, int button)
virtual void	mouseReleased (int x, int y, int button)
virtual void	mouseMoved (int x, int y)
virtual void	mouseDragged (int x, int y, int button)
virtual void	mouseEntered ()
virtual void	mouseExited ()
void	enableToolbar ()
gGUISizer *	getToolbarSizer ()
Public Member Functions inherited from gGUIScrollable
	gGUIScrollable ()
virtual	~gGUIScrollable ()
void	enableScrollbars (bool isVerticalEnabled, bool isHorizontalEnabled)
void	updateScrollbar ()
void	draw ()
virtual void	drawContent ()
virtual void	drawScrollbars ()
virtual void	windowResized (int w, int h)
virtual void	mouseScrolled (int x, int y)
int	getVerticalScroll ()
gFbo *	getFbo ()
int	getTitleTop ()
void	setToolbarSpace (int toolbarW, int toolbarH)
Public Member Functions inherited from gGUIControl
	gGUIControl ()
virtual	~gGUIControl ()
virtual int	getCursor (int x, int y)
virtual int	calculateContentHeight ()
virtual bool	countAsSpace ()
void	setCountAsSpace (bool isSpace)
Public Member Functions inherited from gBaseGUIObject
	gBaseGUIObject ()
virtual	~gBaseGUIObject ()
int	getId ()
int	getType ()
void	setEnabled (bool isEnabled)
bool	isEnabled ()
void	setTitleOn (bool isTitleOn)
bool	isTitleOn ()
virtual void	setTopParent (gBaseGUIObject *parentGUIObject)
gBaseGUIObject *	getTopParent ()
virtual void	setParent (gBaseGUIObject *parentGUIObject)
gBaseGUIObject *	getParent ()
void	setParentSlotNo (int parentSlotLineNo, int parentSlotColumnNo)
int	getParentSlotLineNo ()
int	getParentSlotColumnNo ()
void	setTitle (std::string title)
std::string	getTitle ()
virtual void	keyPressed (int key)
virtual void	keyReleased (int key)
virtual void	charPressed (unsigned int codepoint)
virtual void	onGUIEvent (int guiObjectId, int eventType, int sourceEventType, std::string value1="", std::string value2="")
void	setRootApp (gBaseApp *root)
virtual void	setCursorOn (bool isOn)
Public Member Functions inherited from gRenderObject
	gRenderObject ()
int	getScreenWidth ()
int	getScreenHeight ()
void	pushMatrix ()
void	popMatrix ()
Public Member Functions inherited from gObject
	gObject ()
void	logi (std::string message)
void	logd (std::string message)
void	logw (std::string message)
void	loge (std::string message)
void	logi (std::string tag, std::string message)
void	logd (std::string tag, std::string message)
void	logw (std::string tag, std::string message)
void	loge (std::string tag, std::string message)

Additional Inherited Members
Public Types inherited from gBaseGUIObject
enum	{ TEXTALIGNMENT_LEFT , TEXTALIGNMENT_MIDDLE , TEXTALIGNMENT_RIGHT }
Static Public Member Functions inherited from gBaseGUIObject
static void	setBackgroundColor (gColor *backgroundColor)
static gColor *	getBackgroundColor ()
static void	setMiddlegroundColor (gColor *middlegroundColor)
static gColor *	getMiddlegroundColor ()
static void	setForegroundColor (gColor *foregroundColor)
static gColor *	getForegroundColor ()
static void	setTextBackgroundColor (gColor *textBackgroundColor)
static gColor *	getTextBackgroundColor ()
static void	setNavigationBackgroundColor (gColor *navigationBackgroundColor)
static gColor *	getNavigationBackgroundColor ()
static void	setFont (gFont *font)
static gFont *	getFont ()
static void	setFontColor (gColor *fontColor)
static gColor *	getFontColor ()
static void	setNavigationFontColor (gColor *navigationFontColor)
static gColor *	getNavigationFontColor ()
static void	setButtonColor (gColor *color)
static gColor *	getButtonColor ()
static void	setPressedButtonColor (gColor *color)
static gColor *	getPressedButtonColor ()
static void	setDisabledButtonColor (gColor *color)
static gColor *	getDisabledButtonColor ()
static void	setButtonFontColor (gColor *color)
static gColor *	getButtonFontColor ()
static void	setPressedButtonFontColor (gColor *color)
static gColor *	getPressedButtonFontColor ()
static void	setDisabledButtonFontColor (gColor *color)
static gColor *	getDisabledButtonFontColor ()
Static Public Member Functions inherited from gRenderObject
static void	setScreenSize (int screenWidth, int screenHeight)
static void	setUnitScreenSize (int unitWidth, int unitHeight)
static void	setScreenScaling (int screenScaling)
static void	enableShadowMapping ()
static void	disableShadowMapping ()
static bool	isShadowMappingEnabled ()
static gRenderer *	getRenderer ()
static void	destroyRenderer ()
static void	createRenderer ()
Static Public Member Functions inherited from gObject
static std::string	gGetAppDir ()
static std::string	gGetAssetsDir ()
static void	gSetAssetsDir (std::string assetsDir)
static std::string	gGetFilesDir ()
static std::string	gGetImagesDir ()
static std::string	gGetFontsDir ()
static std::string	gGetModelsDir ()
static std::string	gGetTexturesDir ()
static std::string	gGetShadersDir ()
static std::string	gGetSoundsDir ()
static std::string	gGetDatabasesDir ()
static std::string	gGetVideosDir ()
static void	setCurrentResolution (int scalingNo, int currentResolutionNo)
Public Attributes inherited from gBaseGUIObject
int	id
int	type
int	left
int	top
int	right
int	bottom
int	width
int	height
int	titlex
int	titley
int	titleheight
bool	isfocused
bool	iscursoron
bool	issizer
bool	iscontainer
bool	isresizable
Static Public Attributes inherited from gBaseGUIObject
static const int	GUIEVENT_FOCUSED = -1
static const int	GUIEVENT_UNFOCUSED = -2
static const int	CURSOR_ARROW = 0
static const int	CURSOR_IBEAM = 1
static const int	CURSOR_CROSSHAIR = 2
static const int	CURSOR_HAND = 3
static const int	CURSOR_HRESIZE = 4
static const int	CURSOR_VRESIZE = 5
static int	focusid
static int	previousfocusid
Static Public Attributes inherited from gObject
static const int	LOGLEVEL_SILENT
static const int	LOGLEVEL_DEBUG
static const int	LOGLEVEL_INFO
static const int	LOGLEVEL_WARNING
static const int	LOGLEVEL_ERROR
Protected Member Functions inherited from gGUIScrollable
bool	isPointInsideVerticalScrollbar (int x, int y, bool checkFullSize=false)
bool	isPointInsideHorizontalScrollbar (int x, int y, bool checkFullSize=false)
void	setDimensions (int width, int height)
Protected Attributes inherited from gGUIScrollable
const int	barsize = 12
int	scrollamount = 8
int	boxw = 0
int	boxh = 0
int	totalw = 0
int	totalh = 0
int	verticalscroll = 0
int	horizontalscroll = 0
int	verticalscrollbarpos = 0
int	horizontalscrollbarpos = 0
int	scrollbarverticalsize = 0
int	scrollbarhorizontalsize = 0
bool	isdraggingverticalscroll = false
int	verticalscrolldragstart = 0
float	verticalscrollclickedtime = 0.0f
bool	isdragginghorizontalscroll = false
int	horizontalscrolldragstart = 0
float	horizontalscrollclickedtime = 0.0f
Protected Attributes inherited from gGUIControl
bool	countasspace
int	oldwidth
int	oldheight
Protected Attributes inherited from gBaseGUIObject
std::string	title
gBaseApp *	root
gBaseGUIObject *	topparent
gBaseGUIObject *	parent
bool	isenabled
bool	istitleon
int	parentslotlineno
int	parentslotcolumnno
Static Protected Attributes inherited from gBaseGUIObject
static gColor *	backgroundcolor
static gColor *	middlegroundcolor
static gColor *	foregroundcolor
static gColor *	textbackgroundcolor
static gColor *	navigationbackgroundcolor
static gFont *	font
static gColor *	fontcolor
static gColor *	navigationfontcolor
static gColor *	buttoncolor
static gColor *	pressedbuttoncolor
static gColor *	disabledbuttoncolor
static gColor *	buttonfontcolor
static gColor *	pressedbuttonfontcolor
static gColor *	disabledbuttonfontcolor
static gGUIActionManager	actionmanager
static gGUIResources	res
Static Protected Attributes inherited from gRenderObject
static bool	isshadowmappingenabled
Static Protected Attributes inherited from gObject
static int	renderpassnum
static int	renderpassno
static int	releasescaling
static int	releaseresolution

Constructor & Destructor Documentation

gGUINavigation()

gGUINavigation::gGUINavigation

(

)

~gGUINavigation()

virtual gGUINavigation::~gGUINavigation ( )

virtual

Member Function Documentation

addPane()

void gGUINavigation::addPane	(	gGUIPane *	newPane,
		bool	isEnabled = true
	)

clear()

void gGUINavigation::clear

(

)

draw()

virtual void gGUINavigation::draw ( )

virtual

Reimplemented from gGUIControl.

enableToolbar()

void gGUINavigation::enableToolbar

(

)

getPane()

gGUIPane * gGUINavigation::getPane

(

int

paneNo

)

getPaneNum()

int gGUINavigation::getPaneNum

(

)

getSelectedPane()

gGUIPane * gGUINavigation::getSelectedPane

(

)

getSelectedPaneNo()

int gGUINavigation::getSelectedPaneNo

(

)

getToolbarSizer()

gGUISizer * gGUINavigation::getToolbarSizer

(

)

isPaneEnabled()

bool gGUINavigation::isPaneEnabled

(

int

paneNo

)

mouseDragged()

virtual void gGUINavigation::mouseDragged ( int  x, int  y, int  button  )

virtual

Reimplemented from gGUIScrollable.

mouseEntered()

virtual void gGUINavigation::mouseEntered ( )

virtual

Reimplemented from gBaseGUIObject.

mouseExited()

virtual void gGUINavigation::mouseExited ( )

virtual

Reimplemented from gBaseGUIObject.

mouseMoved()

virtual void gGUINavigation::mouseMoved ( int  x, int  y  )

virtual

Reimplemented from gGUIScrollable.

mousePressed()

virtual void gGUINavigation::mousePressed ( int  x, int  y, int  button  )

virtual

Reimplemented from gGUIScrollable.

mouseReleased()

virtual void gGUINavigation::mouseReleased ( int  x, int  y, int  button  )

virtual

Reimplemented from gGUIScrollable.

removePane()

void gGUINavigation::removePane

(

int

paneNo

)

set()

virtual void gGUINavigation::set ( gBaseApp *  root, gBaseGUIObject *  topParentGUIObject, gBaseGUIObject *  parentGUIObject, int  parentSlotLineNo, int  parentSlotColumnNo, int  x, int  y, int  w, int  h  )

virtual

Reimplemented from gGUIControl.

setPane()

void gGUINavigation::setPane	(	int	paneNo,
		gGUIPane *	newPane,
		bool	isEnabled = true
	)

setPaneEnabled()

void gGUINavigation::setPaneEnabled	(	int	paneNo,
		bool	isEnabled
	)

setSelectedPaneNo()

void gGUINavigation::setSelectedPaneNo

(

int

paneNo

)

showPane()

void gGUINavigation::showPane

(

gGUIPane *

paneToShow

)

update()

virtual void gGUINavigation::update ( )

virtual

Reimplemented from gGUIControl.

---

The documentation for this class was generated from the following file:

• gGUINavigation.h
