#include <gGUIImageButton.h>

Inheritance diagram for gGUIImageButton:

[legend]

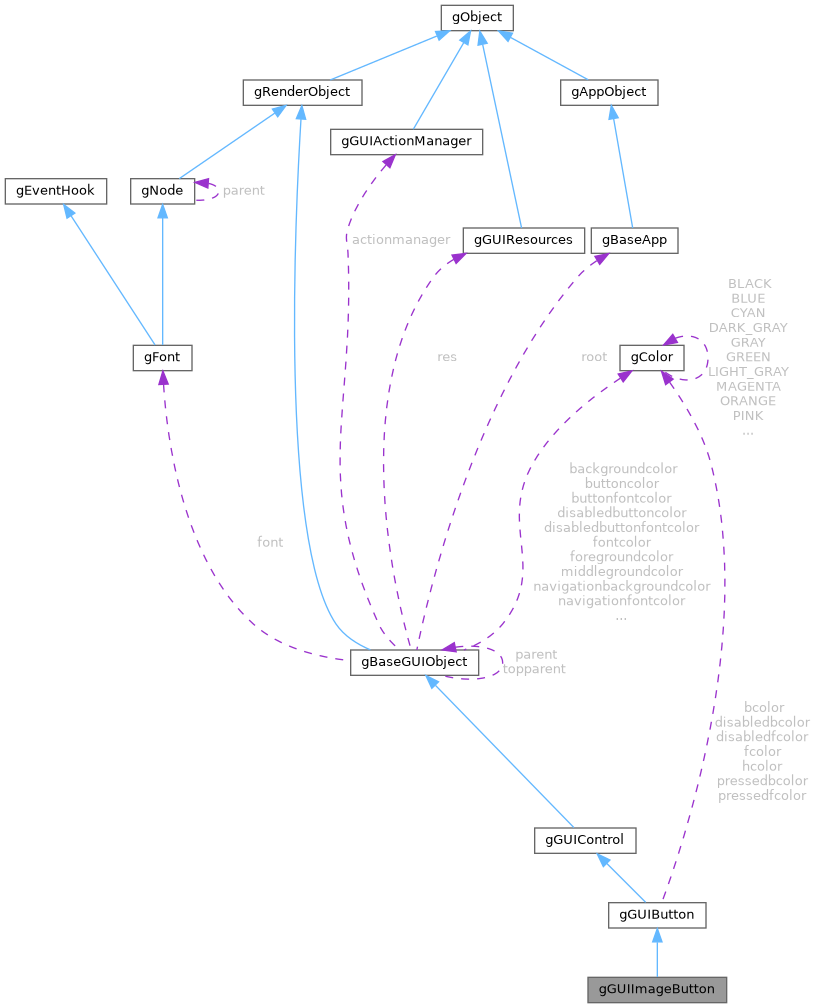

Collaboration diagram for gGUIImageButton:

[legend]

Public Member Functions
	gGUIImageButton ()

virtual	~gGUIImageButton ()

void	draw ()

void	loadButtonImages (const std::string &imagePath)

void	loadPressedButtonImages (const std::string &imagePath)

void	setButtonImage (gImage setImage)

void	setPressedButtonImage (gImage setImage)

void	setImageStretched (bool stretch)

std::string	getButtonImagePath ()

std::string	getPressedButtonImagePath ()

int	getButtonWidth ()

int	getButtonHeight ()

void	setButtonImageFromIcon (int iconId, bool isIconBig=false)

void	setPressedButtonImageFromIcon (int pressedIconId, bool isIconBig=false)

Public Member Functions inherited from gGUIButton
	gGUIButton ()

virtual	~gGUIButton ()

void	setTitle (std::string title)

void	setSize (int width, int height)

void	setToggle (bool isToggle)

void	setDisabled (bool isDisabled)

void	setTextVisibility (bool isVisible)

bool	isPressed ()

bool	isToggle ()

bool	isDisabled ()

bool	isTextVisible ()

void	setButtonColor (gColor color)

void	setPressedButtonColor (gColor color)

void	setDisabledButtonColor (gColor color)

void	setButtonFontColor (gColor color)

void	setPressedButtonFontColor (gColor color)

void	setDisabledButtonFontColor (gColor color)

gColor *	getButtonColor ()

gColor *	getPressedButtonColor ()

gColor *	getDisabledButtonColor ()

gColor *	getButtonFontColor ()

gColor *	getPressedButtonFontColor ()

gColor *	getDisabledButtonFontColor ()

void	enableBackgroundFill (bool isEnabled)

int	getButtonWidth ()

int	getButtonHeight ()

virtual void	update ()

virtual void	mousePressed (int x, int y, int button)

virtual void	mouseReleased (int x, int y, int button)

virtual void	mouseMoved (int x, int y)

virtual void	mouseDragged (int x, int y, int button)

virtual void	mouseEntered ()

virtual void	mouseExited ()

void	setButtonh (int buttonh)

void	setButtonw (int buttonw)

Public Member Functions inherited from gGUIControl
	gGUIControl ()

virtual	~gGUIControl ()

virtual void	set (gBaseApp root, gBaseGUIObject topParentGUIObject, gBaseGUIObject *parentGUIObject, int parentSlotLineNo, int parentSlotColumnNo, int x, int y, int w, int h)

virtual int	getCursor (int x, int y)

virtual int	calculateContentHeight ()

virtual bool	countAsSpace ()

void	setCountAsSpace (bool isSpace)

Public Member Functions inherited from gBaseGUIObject
	gBaseGUIObject ()

virtual	~gBaseGUIObject ()

int	getId ()

int	getType ()

void	setEnabled (bool isEnabled)

bool	isEnabled ()

void	setTitleOn (bool isTitleOn)

bool	isTitleOn ()

virtual void	setTopParent (gBaseGUIObject *parentGUIObject)

gBaseGUIObject *	getTopParent ()

virtual void	setParent (gBaseGUIObject *parentGUIObject)

gBaseGUIObject *	getParent ()

void	setParentSlotNo (int parentSlotLineNo, int parentSlotColumnNo)

int	getParentSlotLineNo ()

int	getParentSlotColumnNo ()

void	setTitle (std::string title)

std::string	getTitle ()

virtual void	keyPressed (int key)

virtual void	keyReleased (int key)

virtual void	charPressed (unsigned int codepoint)

virtual void	mouseScrolled (int x, int y)

virtual void	windowResized (int w, int h)

virtual void	onGUIEvent (int guiObjectId, int eventType, int sourceEventType, std::string value1="", std::string value2="")

void	setRootApp (gBaseApp *root)

virtual void	setCursorOn (bool isOn)

Public Member Functions inherited from gRenderObject
	gRenderObject ()

int	getScreenWidth ()

int	getScreenHeight ()

void	pushMatrix ()

void	popMatrix ()

Public Member Functions inherited from gObject
	gObject ()

void	logi (std::string message)

void	logd (std::string message)

void	logw (std::string message)

void	loge (std::string message)

void	logi (std::string tag, std::string message)

void	logd (std::string tag, std::string message)

void	logw (std::string tag, std::string message)

void	loge (std::string tag, std::string message)

Additional Inherited Members
Public Types inherited from gBaseGUIObject
enum	{ TEXTALIGNMENT_LEFT , TEXTALIGNMENT_MIDDLE , TEXTALIGNMENT_RIGHT }

Static Public Member Functions inherited from gBaseGUIObject
static void	setBackgroundColor (gColor *backgroundColor)

static gColor *	getBackgroundColor ()

static void	setMiddlegroundColor (gColor *middlegroundColor)

static gColor *	getMiddlegroundColor ()

static void	setForegroundColor (gColor *foregroundColor)

static gColor *	getForegroundColor ()

static void	setTextBackgroundColor (gColor *textBackgroundColor)

static gColor *	getTextBackgroundColor ()

static void	setNavigationBackgroundColor (gColor *navigationBackgroundColor)

static gColor *	getNavigationBackgroundColor ()

static void	setFont (gFont *font)

static gFont *	getFont ()

static void	setFontColor (gColor *fontColor)

static gColor *	getFontColor ()

static void	setNavigationFontColor (gColor *navigationFontColor)

static gColor *	getNavigationFontColor ()

static void	setButtonColor (gColor *color)

static gColor *	getButtonColor ()

static void	setPressedButtonColor (gColor *color)

static gColor *	getPressedButtonColor ()

static void	setDisabledButtonColor (gColor *color)

static gColor *	getDisabledButtonColor ()

static void	setButtonFontColor (gColor *color)

static gColor *	getButtonFontColor ()

static void	setPressedButtonFontColor (gColor *color)

static gColor *	getPressedButtonFontColor ()

static void	setDisabledButtonFontColor (gColor *color)

static gColor *	getDisabledButtonFontColor ()

Static Public Member Functions inherited from gRenderObject
static void	setScreenSize (int screenWidth, int screenHeight)

static void	setUnitScreenSize (int unitWidth, int unitHeight)

static void	setScreenScaling (int screenScaling)

static void	enableShadowMapping ()

static void	disableShadowMapping ()

static bool	isShadowMappingEnabled ()

static gRenderer *	getRenderer ()

static void	destroyRenderer ()

static void	createRenderer ()

Static Public Member Functions inherited from gObject
static std::string	gGetAppDir ()

static std::string	gGetAssetsDir ()

static void	gSetAssetsDir (std::string assetsDir)

static std::string	gGetFilesDir ()

static std::string	gGetImagesDir ()

static std::string	gGetFontsDir ()

static std::string	gGetModelsDir ()

static std::string	gGetTexturesDir ()

static std::string	gGetShadersDir ()

static std::string	gGetSoundsDir ()

static std::string	gGetDatabasesDir ()

static std::string	gGetVideosDir ()

static void	setCurrentResolution (int scalingNo, int currentResolutionNo)

Public Attributes inherited from gBaseGUIObject
int	id

int	type

int	left

int	top

int	right

int	bottom

int	width

int	height

int	titlex

int	titley

int	titleheight

bool	isfocused

bool	iscursoron

bool	issizer

bool	iscontainer

bool	isresizable

Static Public Attributes inherited from gBaseGUIObject
static const int	GUIEVENT_FOCUSED = -1

static const int	GUIEVENT_UNFOCUSED = -2

static const int	CURSOR_ARROW = 0

static const int	CURSOR_IBEAM = 1

static const int	CURSOR_CROSSHAIR = 2

static const int	CURSOR_HAND = 3

static const int	CURSOR_HRESIZE = 4

static const int	CURSOR_VRESIZE = 5

static int	focusid

static int	previousfocusid

Static Public Attributes inherited from gObject
static const int	LOGLEVEL_SILENT

static const int	LOGLEVEL_DEBUG

static const int	LOGLEVEL_INFO

static const int	LOGLEVEL_WARNING

static const int	LOGLEVEL_ERROR

Protected Member Functions inherited from gGUIButton
void	resetTitlePosition ()

Protected Attributes inherited from gGUIButton
bool	ispressed

bool	ishover

int	buttonw

int	buttonh

int	tx

int	ty

bool	istextvisible

bool	istoggle

bool	ispressednow

bool	isdisabled

gColor	bcolor

gColor	pressedbcolor

gColor	disabledbcolor

gColor	fcolor

gColor	pressedfcolor

gColor	disabledfcolor

gColor	hcolor

bool	fillbackground

Protected Attributes inherited from gGUIControl
bool	countasspace

int	oldwidth

int	oldheight

Protected Attributes inherited from gBaseGUIObject
std::string	title

gBaseApp *	root

gBaseGUIObject *	topparent

gBaseGUIObject *	parent

bool	isenabled

bool	istitleon

int	parentslotlineno

int	parentslotcolumnno

Static Protected Attributes inherited from gBaseGUIObject
static gColor *	backgroundcolor

static gColor *	middlegroundcolor

static gColor *	foregroundcolor

static gColor *	textbackgroundcolor

static gColor *	navigationbackgroundcolor

static gFont *	font

static gColor *	fontcolor

static gColor *	navigationfontcolor

static gColor *	buttoncolor

static gColor *	pressedbuttoncolor

static gColor *	disabledbuttoncolor

static gColor *	buttonfontcolor

static gColor *	pressedbuttonfontcolor

static gColor *	disabledbuttonfontcolor

static gGUIActionManager	actionmanager

static gGUIResources	res

Static Protected Attributes inherited from gRenderObject
static bool	isshadowmappingenabled

Static Protected Attributes inherited from gObject
static int	renderpassnum

static int	renderpassno

static int	releasescaling

static int	releaseresolution

Detailed Description

Uploaded image acts as a button. The Image adding both as an image and file path. Stretches the image at the button size or placed the image by keeping its proportions. Gets the image with its file location, width and height of the button.

Constructor & Destructor Documentation

◆ gGUIImageButton()

gGUIImageButton::gGUIImageButton ( )

◆ ~gGUIImageButton()

virtual gGUIImageButton::~gGUIImageButton ( )

virtual

Member Function Documentation

◆ draw()

void gGUIImageButton::draw ( )

virtual

Reimplemented from gGUIButton.

◆ getButtonHeight()

int gGUIImageButton::getButtonHeight ( )

Gets the height of the button.

◆ getButtonImagePath()

std::string gGUIImageButton::getButtonImagePath ( )

Parameters

getButtonImagePath Gets the image with its file location. If set command used instead of load command code line returns null result .

◆ getButtonWidth()

int gGUIImageButton::getButtonWidth ( )

Gets the width of the button.

◆ getPressedButtonImagePath()

std::string gGUIImageButton::getPressedButtonImagePath ( )

Parameters

getPressedButtonImagePath Gets the button pressed image with its file location. If set command used instead of load command code line returns null result.

◆ loadButtonImages()

void gGUIImageButton::loadButtonImages ( const std::string & imagePath )

Loads the image to the button when mouse released

Parameters

imagePath Adds the image with its file location.

◆ loadPressedButtonImages()

void gGUIImageButton::loadPressedButtonImages ( const std::string & imagePath )

Loads the image to the button when mouse pressed

Parameters

imagePath Adds the image with its file location. If the image isn't uploaded to the previous section, there will be blank area at button when mouse pressed

◆ setButtonImage()

void gGUIImageButton::setButtonImage ( gImage setImage )

Sets the image

Parameters

setImage adds the preloaded image with using gImage gGUI without file location.

◆ setButtonImageFromIcon()

void gGUIImageButton::setButtonImageFromIcon	(	int	iconId,
		bool	isIconBig = `false`
	)

Sets the button image using icons from the resources.

◆ setImageStretched()

void gGUIImageButton::setImageStretched ( bool stretch )

Strethes the image in button.

Parameters

stretch stretches the image if the value is true. If the value is false the image will placed keeping the proportion.

◆ setPressedButtonImage()

void gGUIImageButton::setPressedButtonImage ( gImage setImage )

Sets the image to the button when mouse pressed

Parameters

setImage adds the preloaded image with using gImage gGUI without file location. If the image isn't uploaded to the previous section, there will be blank area at button when mouse pressed

◆ setPressedButtonImageFromIcon()

void gGUIImageButton::setPressedButtonImageFromIcon	(	int	pressedIconId,
		bool	isIconBig = `false`
	)

Sets the pressed button image using icons from the resources.

The documentation for this class was generated from the following file:

gGUIImageButton.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ gGUIImageButton()

◆ ~gGUIImageButton()

Member Function Documentation

◆ draw()

◆ getButtonHeight()

◆ getButtonImagePath()

◆ getButtonWidth()

◆ getPressedButtonImagePath()

◆ loadButtonImages()

◆ loadPressedButtonImages()

◆ setButtonImage()

◆ setButtonImageFromIcon()

◆ setImageStretched()

◆ setPressedButtonImage()

◆ setPressedButtonImageFromIcon()
