#include <gGUIColumnChart.h>

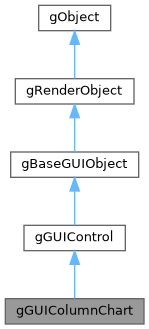

Inheritance diagram for gGUIColumnChart:

[legend]

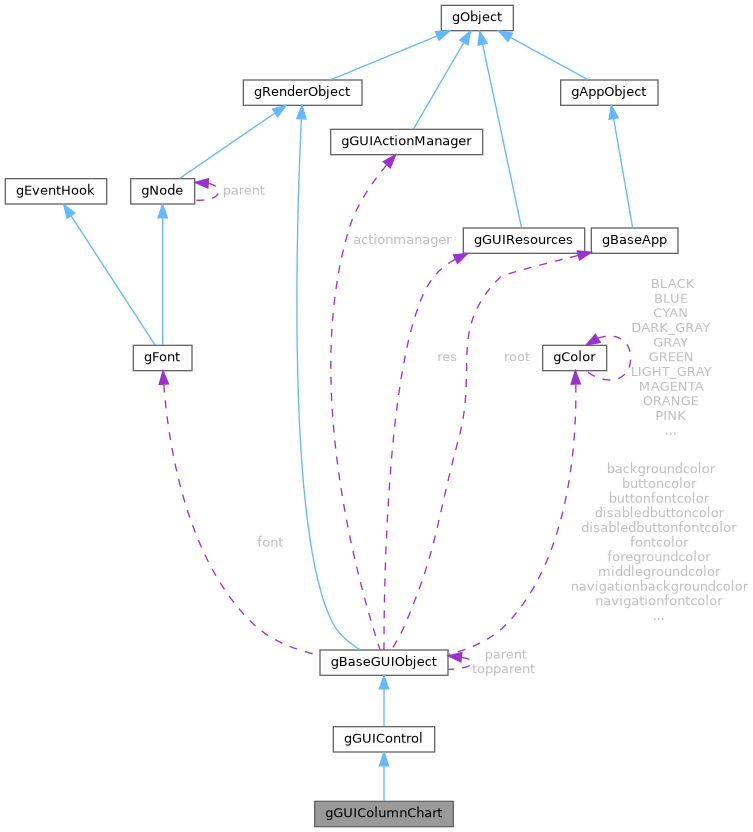

Collaboration diagram for gGUIColumnChart:

[legend]

Public Member Functions
	gGUIColumnChart ()

virtual	~gGUIColumnChart ()

void	draw ()

void	mouseMoved (int x, int y)

void	setChartProp (int chartx, int charty, int chartw, int charth, int columnsw, int columnsmargin, int chartnumberrange)

void	setChartProp (int chartX, int chartY, int chartW, int chartH, int columnsW, int columnsMargin, int minNumRangeX, int maxNumRangeX, int minNumRangeY, int maxNumRangeY)

void	addColumn (int columnh, gColor color)

void	addMultiColumn (int columnum=1, int columnh=0, int columnh2=0, int columnh3=0, int columnh4=0, gColor color={100, 100, 100}, gColor color2={100, 100, 100}, gColor color3={100, 100, 100}, gColor color4={100, 100, 100}, std::string title="", int multicolumnspadding=0)

void	setVisibility (bool gridlineison=1, bool numbersison=1, bool textison=1)

void	clear ()

Public Member Functions inherited from gGUIControl
	gGUIControl ()

virtual	~gGUIControl ()

virtual void	set (gBaseApp root, gBaseGUIObject topParentGUIObject, gBaseGUIObject *parentGUIObject, int parentSlotLineNo, int parentSlotColumnNo, int x, int y, int w, int h)

virtual int	getCursor (int x, int y)

virtual void	update ()

virtual int	calculateContentHeight ()

virtual bool	countAsSpace ()

void	setCountAsSpace (bool isSpace)

Public Member Functions inherited from gBaseGUIObject
	gBaseGUIObject ()

virtual	~gBaseGUIObject ()

int	getId ()

int	getType ()

void	setEnabled (bool isEnabled)

bool	isEnabled ()

void	setTitleOn (bool isTitleOn)

bool	isTitleOn ()

virtual void	setTopParent (gBaseGUIObject *parentGUIObject)

gBaseGUIObject *	getTopParent ()

virtual void	setParent (gBaseGUIObject *parentGUIObject)

gBaseGUIObject *	getParent ()

void	setParentSlotNo (int parentSlotLineNo, int parentSlotColumnNo)

int	getParentSlotLineNo ()

int	getParentSlotColumnNo ()

void	setTitle (std::string title)

std::string	getTitle ()

virtual void	keyPressed (int key)

virtual void	keyReleased (int key)

virtual void	charPressed (unsigned int codepoint)

virtual void	mousePressed (int x, int y, int button)

virtual void	mouseDragged (int x, int y, int button)

virtual void	mouseReleased (int x, int y, int button)

virtual void	mouseScrolled (int x, int y)

virtual void	mouseEntered ()

virtual void	mouseExited ()

virtual void	windowResized (int w, int h)

virtual void	onGUIEvent (int guiObjectId, int eventType, int sourceEventType, std::string value1="", std::string value2="")

void	setRootApp (gBaseApp *root)

virtual void	setCursorOn (bool isOn)

Public Member Functions inherited from gRenderObject
	gRenderObject ()

int	getScreenWidth ()

int	getScreenHeight ()

void	pushMatrix ()

void	popMatrix ()

Public Member Functions inherited from gObject
	gObject ()

void	logi (std::string message)

void	logd (std::string message)

void	logw (std::string message)

void	loge (std::string message)

void	logi (std::string tag, std::string message)

void	logd (std::string tag, std::string message)

void	logw (std::string tag, std::string message)

void	loge (std::string tag, std::string message)

Additional Inherited Members
Public Types inherited from gBaseGUIObject
enum	{ TEXTALIGNMENT_LEFT , TEXTALIGNMENT_MIDDLE , TEXTALIGNMENT_RIGHT }

Static Public Member Functions inherited from gBaseGUIObject
static void	setBackgroundColor (gColor *backgroundColor)

static gColor *	getBackgroundColor ()

static void	setMiddlegroundColor (gColor *middlegroundColor)

static gColor *	getMiddlegroundColor ()

static void	setForegroundColor (gColor *foregroundColor)

static gColor *	getForegroundColor ()

static void	setTextBackgroundColor (gColor *textBackgroundColor)

static gColor *	getTextBackgroundColor ()

static void	setNavigationBackgroundColor (gColor *navigationBackgroundColor)

static gColor *	getNavigationBackgroundColor ()

static void	setFont (gFont *font)

static gFont *	getFont ()

static void	setFontColor (gColor *fontColor)

static gColor *	getFontColor ()

static void	setNavigationFontColor (gColor *navigationFontColor)

static gColor *	getNavigationFontColor ()

static void	setButtonColor (gColor *color)

static gColor *	getButtonColor ()

static void	setPressedButtonColor (gColor *color)

static gColor *	getPressedButtonColor ()

static void	setDisabledButtonColor (gColor *color)

static gColor *	getDisabledButtonColor ()

static void	setButtonFontColor (gColor *color)

static gColor *	getButtonFontColor ()

static void	setPressedButtonFontColor (gColor *color)

static gColor *	getPressedButtonFontColor ()

static void	setDisabledButtonFontColor (gColor *color)

static gColor *	getDisabledButtonFontColor ()

Static Public Member Functions inherited from gRenderObject
static void	setScreenSize (int screenWidth, int screenHeight)

static void	setUnitScreenSize (int unitWidth, int unitHeight)

static void	setScreenScaling (int screenScaling)

static void	enableShadowMapping ()

static void	disableShadowMapping ()

static bool	isShadowMappingEnabled ()

static gRenderer *	getRenderer ()

static void	destroyRenderer ()

static void	createRenderer ()

Static Public Member Functions inherited from gObject
static std::string	gGetAppDir ()

static std::string	gGetAssetsDir ()

static void	gSetAssetsDir (std::string assetsDir)

static std::string	gGetFilesDir ()

static std::string	gGetImagesDir ()

static std::string	gGetFontsDir ()

static std::string	gGetModelsDir ()

static std::string	gGetTexturesDir ()

static std::string	gGetShadersDir ()

static std::string	gGetSoundsDir ()

static std::string	gGetDatabasesDir ()

static std::string	gGetVideosDir ()

static void	setCurrentResolution (int scalingNo, int currentResolutionNo)

Public Attributes inherited from gBaseGUIObject
int	id

int	type

int	left

int	top

int	right

int	bottom

int	width

int	height

int	titlex

int	titley

int	titleheight

bool	isfocused

bool	iscursoron

bool	issizer

bool	iscontainer

bool	isresizable

Static Public Attributes inherited from gBaseGUIObject
static const int	GUIEVENT_FOCUSED = -1

static const int	GUIEVENT_UNFOCUSED = -2

static const int	CURSOR_ARROW = 0

static const int	CURSOR_IBEAM = 1

static const int	CURSOR_CROSSHAIR = 2

static const int	CURSOR_HAND = 3

static const int	CURSOR_HRESIZE = 4

static const int	CURSOR_VRESIZE = 5

static int	focusid

static int	previousfocusid

Static Public Attributes inherited from gObject
static const int	LOGLEVEL_SILENT

static const int	LOGLEVEL_DEBUG

static const int	LOGLEVEL_INFO

static const int	LOGLEVEL_WARNING

static const int	LOGLEVEL_ERROR

Protected Attributes inherited from gGUIControl
bool	countasspace

int	oldwidth

int	oldheight

Protected Attributes inherited from gBaseGUIObject
std::string	title

gBaseApp *	root

gBaseGUIObject *	topparent

gBaseGUIObject *	parent

bool	isenabled

bool	istitleon

int	parentslotlineno

int	parentslotcolumnno

Static Protected Attributes inherited from gBaseGUIObject
static gColor *	backgroundcolor

static gColor *	middlegroundcolor

static gColor *	foregroundcolor

static gColor *	textbackgroundcolor

static gColor *	navigationbackgroundcolor

static gFont *	font

static gColor *	fontcolor

static gColor *	navigationfontcolor

static gColor *	buttoncolor

static gColor *	pressedbuttoncolor

static gColor *	disabledbuttoncolor

static gColor *	buttonfontcolor

static gColor *	pressedbuttonfontcolor

static gColor *	disabledbuttonfontcolor

static gGUIActionManager	actionmanager

static gGUIResources	res

Static Protected Attributes inherited from gRenderObject
static bool	isshadowmappingenabled

Static Protected Attributes inherited from gObject
static int	renderpassnum

static int	renderpassno

static int	releasescaling

static int	releaseresolution

Constructor & Destructor Documentation

◆ gGUIColumnChart()

gGUIColumnChart::gGUIColumnChart ( )

◆ ~gGUIColumnChart()

virtual gGUIColumnChart::~gGUIColumnChart ( )

virtual

Member Function Documentation

◆ addColumn()

void gGUIColumnChart::addColumn	(	int	columnh,
		gColor	color
	)

◆ addMultiColumn()

void gGUIColumnChart::addMultiColumn	(	int	columnum = `1`,
		int	columnh = `0`,
		int	columnh2 = `0`,
		int	columnh3 = `0`,
		int	columnh4 = `0`,
		gColor	color = `{100, 100, 100}`,
		gColor	color2 = `{100, 100, 100}`,
		gColor	color3 = `{100, 100, 100}`,
		gColor	color4 = `{100, 100, 100}`,
		std::string	title = `""`,
		int	multicolumnspadding = `0`
	)

◆ clear()

void gGUIColumnChart::clear ( )

◆ draw()

void gGUIColumnChart::draw ( )

virtual

Reimplemented from gGUIControl.

◆ mouseMoved()

void gGUIColumnChart::mouseMoved	(	int	x,
		int	y
	)

virtual

Reimplemented from gBaseGUIObject.

◆ setChartProp() [1/2]

void gGUIColumnChart::setChartProp	(	int	chartx,
		int	charty,
		int	chartw,
		int	charth,
		int	columnsw,
		int	columnsmargin,
		int	chartnumberrange
	)

◆ setChartProp() [2/2]

void gGUIColumnChart::setChartProp	(	int	chartX,
		int	chartY,
		int	chartW,
		int	chartH,
		int	columnsW,
		int	columnsMargin,
		int	minNumRangeX,
		int	maxNumRangeX,
		int	minNumRangeY,
		int	maxNumRangeY
	)

◆ setVisibility()

void gGUIColumnChart::setVisibility	(	bool	gridlineison = `1`,
		bool	numbersison = `1`,
		bool	textison = `1`
	)

The documentation for this class was generated from the following file:

gGUIColumnChart.h
